Spark Operations
Lesson objectives
In this lesson, we will explain the following topics:
- Understand the two types of Spark operations: transformations and actions.
- Learn about the immutability of Spark operations and its implications.
- Explore examples of transformations and actions, including lazy evaluation and its benefits.
Spark Operations
Spark Operations
- Spark operations on distributed data can be classified into two types: transformations and actions.
- All spark operations are immutable.
Immutable Objects
- An object whose state cannot change after it has been constructed is called immutable (unchangeable).1
- The methods of an immutable object do not modify the state of the object.
Immutable Objects

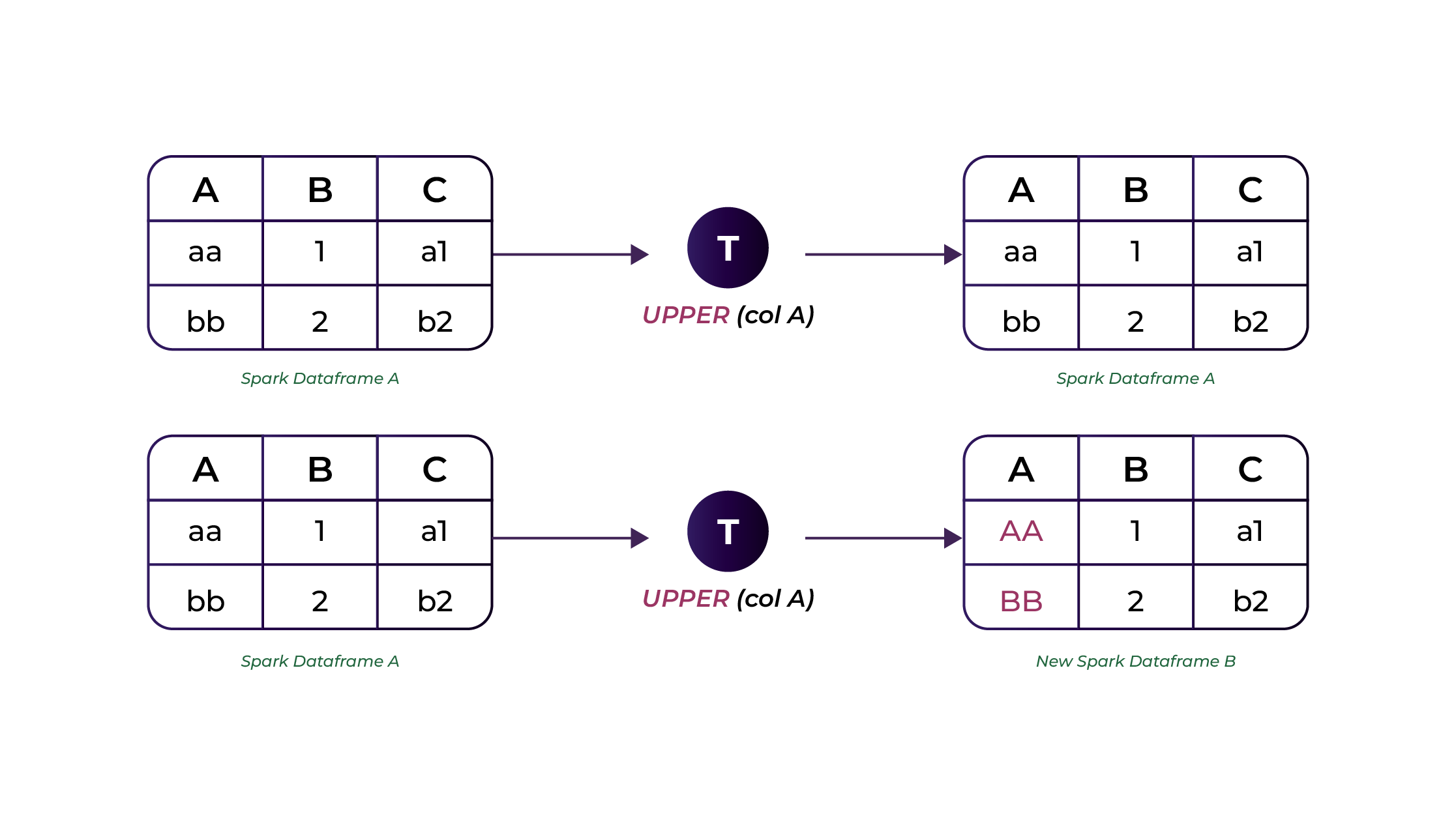

Figure 1: Spark Dataframe is immutable, and you can’t change its values.
Immutable Objects

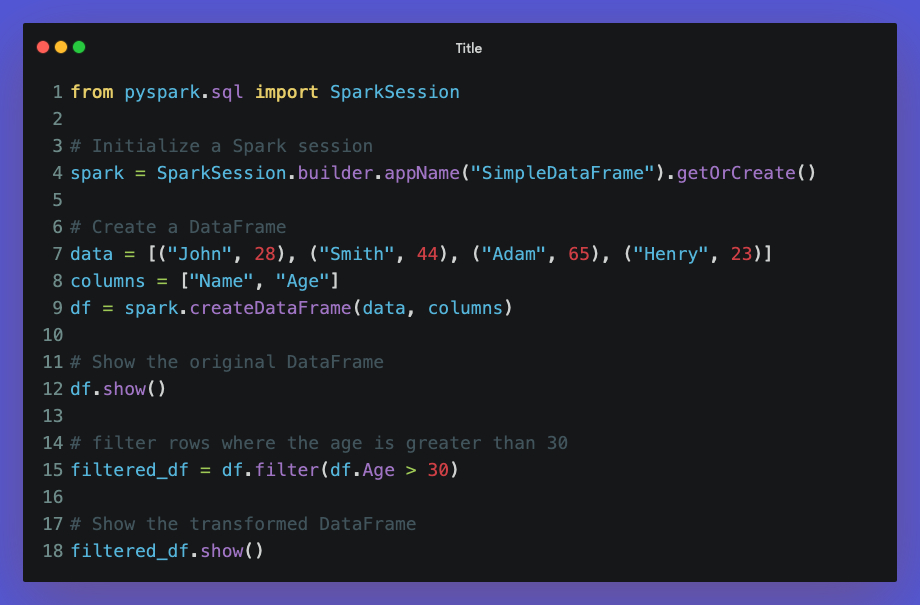

Figure 2: Filtering a PySpark DataFrame Based on Age
Spark Operations: Transformations
- Transformations: transform a Spark DataFrame into a new DataFrame without altering the original data.
- Example of Spark transformations: map(), select(), filter(), or drop().
Spark Transformations: What are Lazy Transformations?
- In Spark, transformations are lazy.
- This means computations are not executed immediately.
- Spark builds a DAG (Directed Acyclic Graph) of transformations.
- All Transformations results are not computed immediately, but they are recorded or remembered as a lineage.
Spark Transformations: Benefits of Lazy Evaluation
- Optimization: A lineage allows Spark, at a later time in its execution plan, to rearrange certain transformations, coalesce them, or optimize transformations into stages for more efficient execution.
- Resource Management: Executes tasks efficiently, using fewer resources.
- Fault Tolerance: Easier to recompute parts of the pipeline if a part fails.
Spark Transformations: Lazy Transformation
- Consider a dataset with map and filter transformations.
- Spark does not execute these transformations when they are defined.
- Transformations are executed when an action (like collect, count) is called.
Lazy Transformations Example

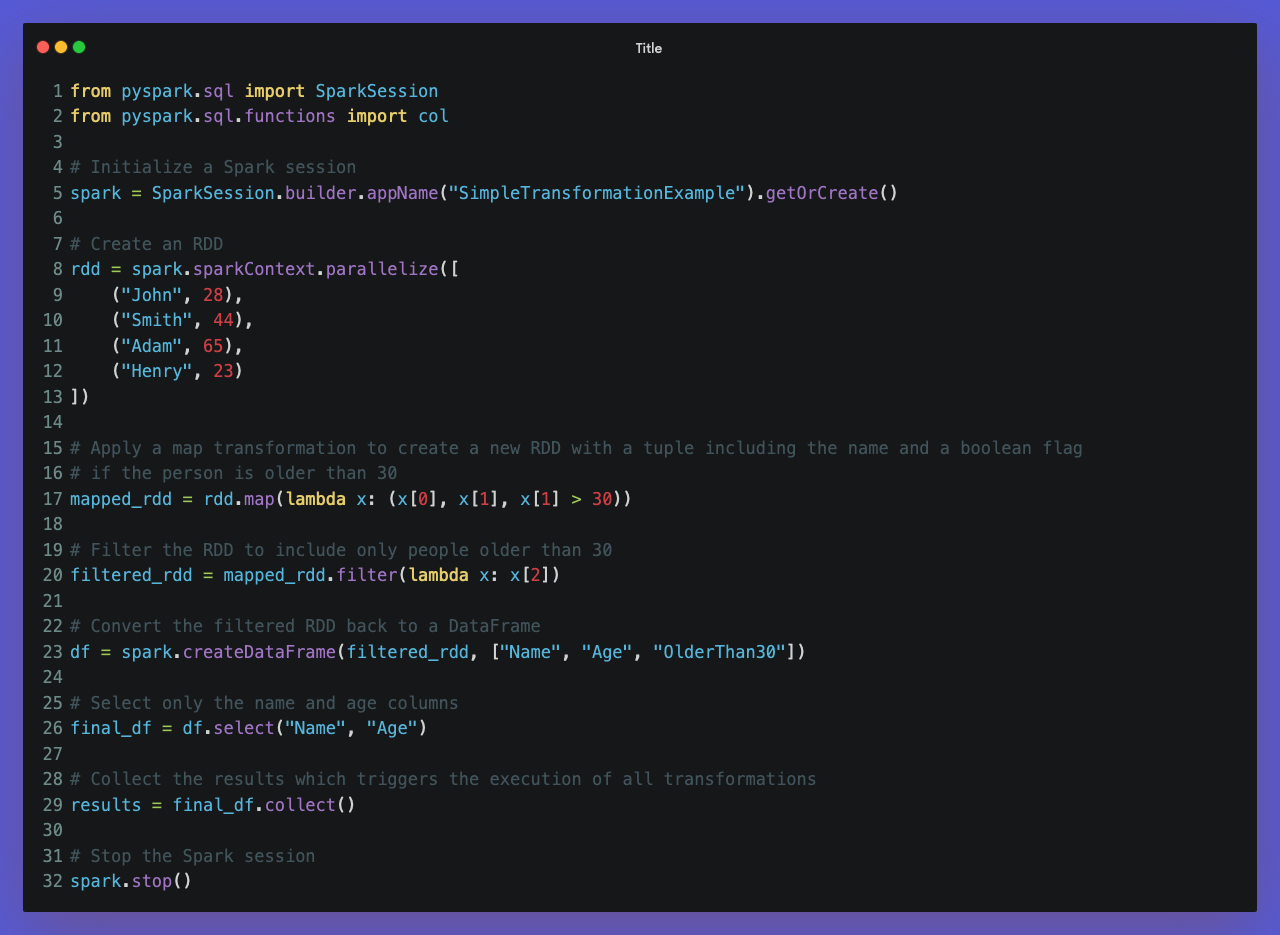

Figure 3: Spark Lazy Transformations Example.
Spark Operations: Actions
- An action triggers the lazy evaluation of all the recorded transformations.
- Actions are operations that trigger execution of transformations.
- They are used to either compute a result to be returned to the Spark driver program or to write data to an external storage system.
- Actions include operations like count, collect, saveAsTextFile, and take.
Examples of Spark Actions
- collect(): Collects all elements from the Spark context to the driver program.
- count(): Returns the number of elements in the dataset.
- saveAsTextFile(path): Saves the dataset to a text file at the specified path.
- take(n): Returns an array with the first n elements of the dataset.
DEMO
Immutable RDDs
# Test Immutable RDDs
numbers = [1, 2, 3, 4, 5]
numbers_rdd = sc.parallelize(numbers)
print(f"Original RDD ID: {numbers_rdd.id()}")
print(f"Original RDD ID: {numbers_rdd.id()}")
# # Apply a transformation: multiply each number by 2
transformed_rdd = numbers_rdd.map(lambda x: x * 2)
print(f"Transformed RDD ID: {transformed_rdd.id()}")
# # Collect the results to trigger the computation
result = transformed_rdd.collect()
print(f"Transformed RDD result: {result}")
// Test Immutable RDDs
val numbers = List(1, 2, 3, 4, 5)
val numbersRdd = sc.parallelize(numbers)
println(s"Original RDD ID: ${numbersRdd.id}")
println(s"Original RDD ID: ${numbersRdd.id}")
println(s"Original RDD ID: ${numbersRdd.id}")
// numbersRdd = numbersRdd.map(x => x * 2) //OPS!!!!!!!!!!!
// Apply a transformation: multiply each number by 2
val transformedRdd = numbersRdd.map(x => x * 2)
println(s"Transformed RDD ID: ${transformedRdd.id}")
// Collect the results to trigger the computation
val result = transformedRdd.collect()
println(s"Transformed RDD result: ${result.mkString(", ")}")
Immutable DF Example
# Create an RDD
data = [("John", 28), ("Smith", 44), ("Adam", 65), ("Henry", 23)]
rdd = sc.parallelize(data)
# Show the original RDD
print("Original RDD:")
for row in rdd.collect():
print(row)
print(f"Original RDD ID: {rdd.id()}")
rdd = rdd.filter(lambda x: x[1] > 30)
print(f"Original RDD ID After filter: {rdd.id()}")
# Filter rows where the age is greater than 30
filtered_rdd = rdd.filter(lambda x: x[1] > 30)
print(f"Transformed RDD ID: {filtered_rdd.id()}")
# Show the transformed RDD
print("Filtered RDD:")
for row in filtered_rdd.collect():
print(row)
// Create an RDD
val data = Seq(("John", 28), ("Smith", 44), ("Adam", 65), ("Henry", 23))
val rdd = sc.parallelize(data)
// Show the original RDD
println("Original RDD:")
rdd.collect().foreach(println)
//rdd = rdd.filter{ case (name, age) => age > 30 }
// // Filter rows where the age is greater than 30
val filteredRdd = rdd.filter{ case (name, age) => age > 30 }
println(s"Transformed RDD ID: ${filteredRdd.id}")
// Show the transformed RDD
println("Filtered RDD:")
filteredRdd.collect().foreach(println)
Spark Lazy Evaluation
# Create an RDD
rdd = sc.parallelize([
("John", 28),
("Smith", 44),
("Adam", 65),
("Henry", 23)
])
# Apply a map transformation to create a new RDD with a tuple including the name and a boolean flag
# if the person is older than 30
mapped_rdd = rdd.map(lambda x: (x[0], x[1], x[1] > 30))
# Filter the RDD to include only people older than 30
filtered_rdd = mapped_rdd.filter(lambda x: x[2])
# Convert the filtered RDD back to a DataFrame
df = spark.createDataFrame(filtered_rdd, ["Name", "Age", "OlderThan30"])
# Select only the name and age columns
final_df = df.select("Name", "Age")
# # Collect the results which triggers the execution of all transformations
results = final_df.collect()
display(results)
Watch on Youtube
Watch on our Servers
You can download the videog the link and chose save link as: Download Video
Download the code
You can download the Jupyter notebook, Databricks Notebook, or the Python source code using the following links:
Referenced from https://otfried.org/courses/cs109scala/tutorial_mutable.html ↩︎
