Docker default bridge network

  • What if we have an application with more than one container.
  • Ex; WordPress rich content management system uses apache httpd and mysql servers.
  • -e, --env list Set environment variables.
docker run --name mysql -e MYSQL_ROOT_PASSWORD=P@ssw0rd -d mysql:5.7
docker run --name mysql -p 3306:3306 -e MYSQL_ROOT_PASSWORD=P@ssw0rd \
       -d mysql:5.7
hostname
# hostname.lan
docker run -it --rm mysql:5.7 mysql -hhostname.lan -uroot -pP@ssw0rd
docker run -it --rm mysql:5.7 mysql -h"$(hostname)" -uroot -pP@ssw0rd
# OR
docker run -it --rm mysql:5.7 mysql -h`hostname` -uroot -pP@ssw0rd

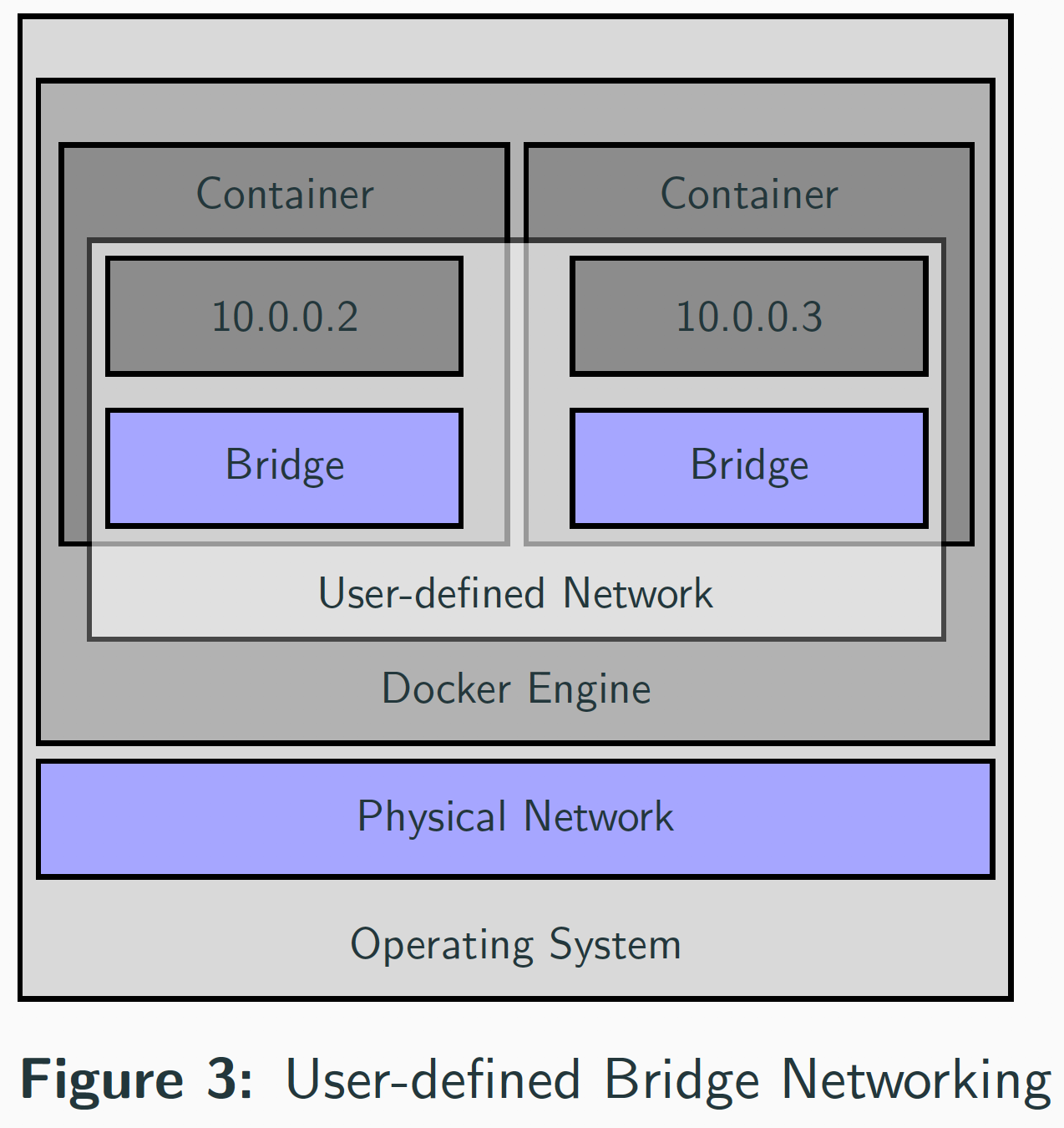

User-defined bridge network

User-defined bridge network

  • User-defined bridges provide automatic DNS resolution between containers.
  • User-defined bridges provide better isolation.
  • Containers can be attached and detached from user-defined networks on the fly.
  • Each user-defined network creates a configurable bridge.
  • Linked containers on the default bridge network share environment variables.

Docker Network Commands

  • create Create a network.
  • ls List networks.
  • connect Connect a container to a network.
  • inspect Display detailed information on one or more networks.
  • rm Deletes one or more networks.
docker network create wp-network
docker network connect wp-network mysql
docker network inspect wp-network
docker run --name wordpress --network wp-network -p 8080:80 \
      -e WORDPRESS_DB_HOST=mysql -e WORDPRESS_DB_NAME=wp_db \
      -e WORDPRESS_DB_USER=root -e WORDPRESS_DB_PASSWORD=P@ssw0rd \
      -d wordpress
docker network inspect wp-network
docker network rm wp-network
